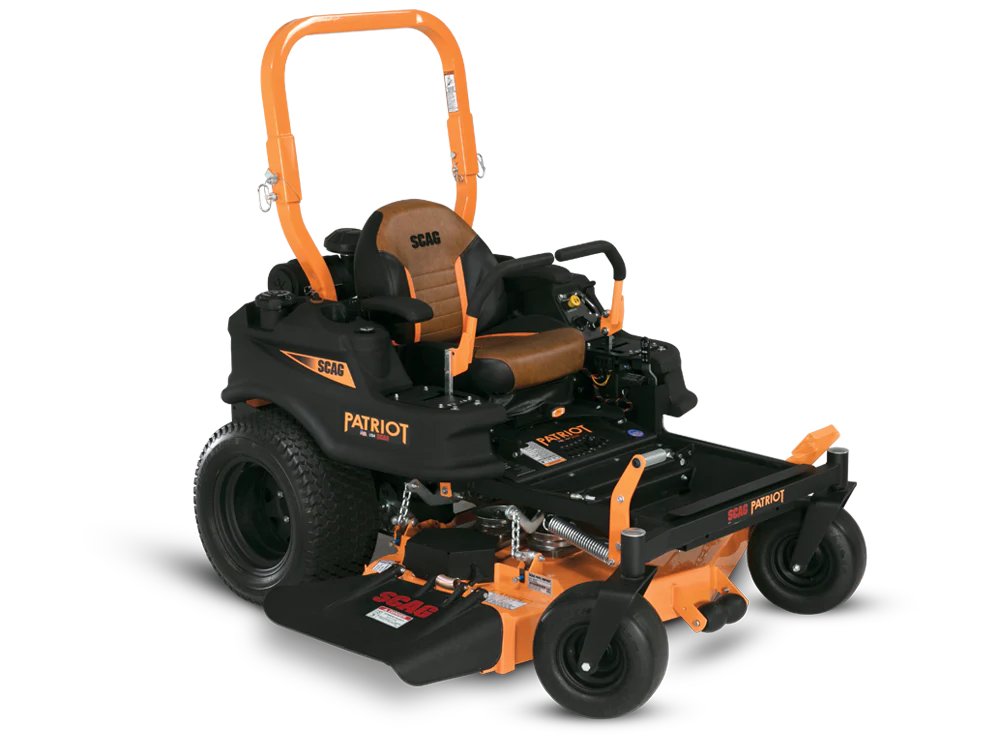

Name: Scag patriot mower
SKU: 72361
Availability: InStock

Product Dimensions	52″ Patriot	61″ Patriot
Length	73″	79″
Width (chute down)	64.5″	73.5″
Width (chute in transport position)	53″	62″
Height (ROPS folded)	46.5″	47″
Height (ROPS up)	61″	61″
Weight	907-911 lb	952-956 lb

	Specification	Patriot
General	Total Fuel Capacity	6.5 gallons
	Drive Tires	22″ x 10.5″-12″ (52″) 24″ x 12″-12″ (61″)
	Caster Tires	13″ x 6.5″-6″
	Seat	Torsion-spring suspension seat
Drive System	Drive System Type	Hydro-Gear ZT3100 Transaxle (52″) Hydro-Gear ZT3400 Transaxle (61″)
	Pumps	ZT3100 Internal Pump: 10 cc (52″) ZT3400 Internal Pump: 12 cc (61″)
	Motors	Internal Motor: 16 cc
	Forward Ground Speed	8.5 mph (52″) 10 mph (61″)
	Reverse Ground Speed	5 mph
	Parking Brake	Foot-operated pedal
Deck	Cutting Widths	52″ and 61″
	Type	Hero Cutter Deck
	Cutting Height	1.5″ to 5″ in .25″ increments
	Deck Lift	Foot-operated pedal
	Construction	Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
	Spindles	Aluminum housing with sealed ball bearings.
	Blade Engagement	Ogura GT2 (108 ft lb) Adjustable air-gap for extended life.
