The high-quality ESCO 10-Ton Hydraulic Stak-Able Ram Kit is specifically designed for a wide range of heavy-duty applications in the tire/wheel service market and many more. The Stak-Able Ram Kit eliminates the tedious effort required to push rusted, corroded wheels off hubs. Ideal for stubborn 22.5″ and 24.5″ wheels, the Stak-Able Ram Kit is far more resilient and robust than any other equipment alike on the market. Designed for applications in heavy-duty commercial and OTR industry use. Use extensions within the kit separately or as a single long extension.

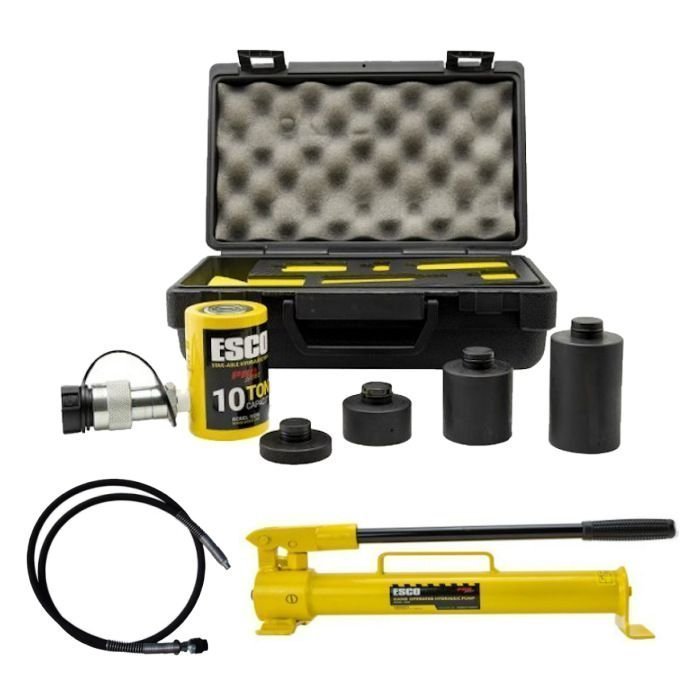

Kit Includes

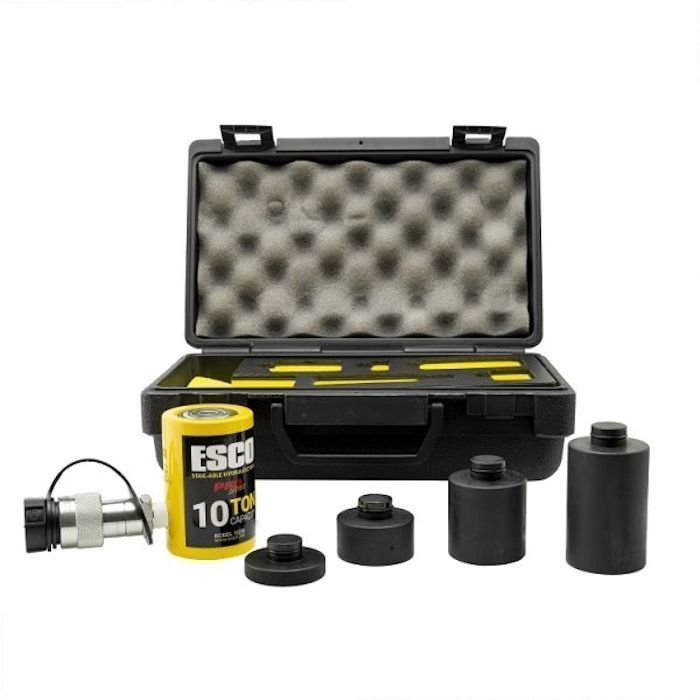

- #10316 – 10-Ton Hydraulic STAK-ABLE Ram Kit
- #10508 – 1 Quart Manual Hydraulic Pump
- #10604 – 8′ Hose Assembly with Hose Coupler
10-Ton Hydraulic STAK-ABLE Ram Kit Features
- Great For Use In Multiple Applications In The Tire/Wheel Service Market And Many More
- Ideal For Low Clearance Applications
- Used To Break The Back Bead By Pushing Off The Chassis On Heavy Duty Equipment
- Great For Loosening Seized Wheels From Back-End Of Vehicle On Heavy Duty Equipment
- Easy Snap-In Extensions
- Made Of High-Quality Steel
- Most Versatile 10-Ton Ram On The Market
- Easy To Switch Out Extensions For Optimal Extension Length

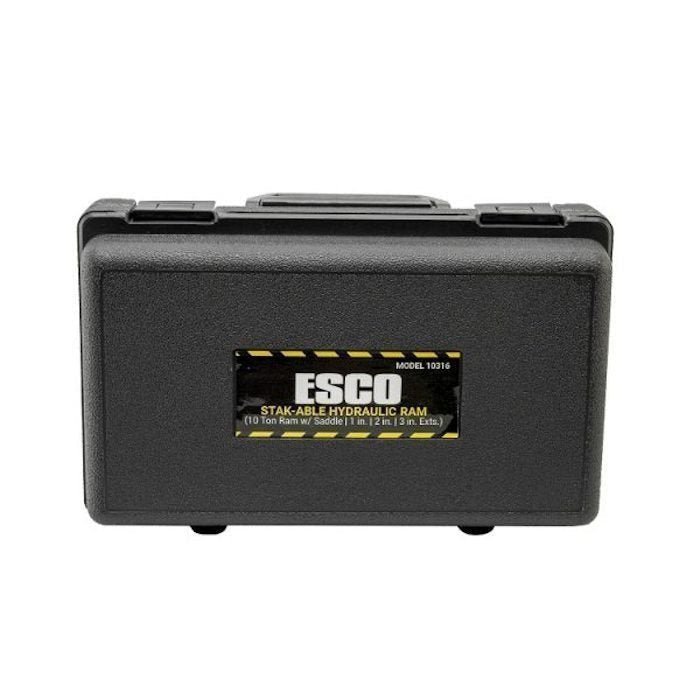

- Includes Carrying Case
- 3-Year Extended Warranty
10-Ton Hydraulic STAK-ABLE Ram Kit Specifications
- Capacity: 10 Tons (20,000 lbs.)
- Maximum Pressure: 10,000 psi
- Retracted Height: 3.5″
- Extended Height: 5″
- Maximum Height: 11.25″
- Stroke: 1.3125″
- Saddle: 0.375″
- Extension 1: 1″
- Extension 2: 2″
- Extension 3: 3″
- Weight: 10 lbs.
- Dimensions (Product Case): 12″ W x 5″ L x 5″ H
- Dimensions (Packaging): 12″ W x 10″ L x 5″ H
- Warranty: (3) Years Limited*

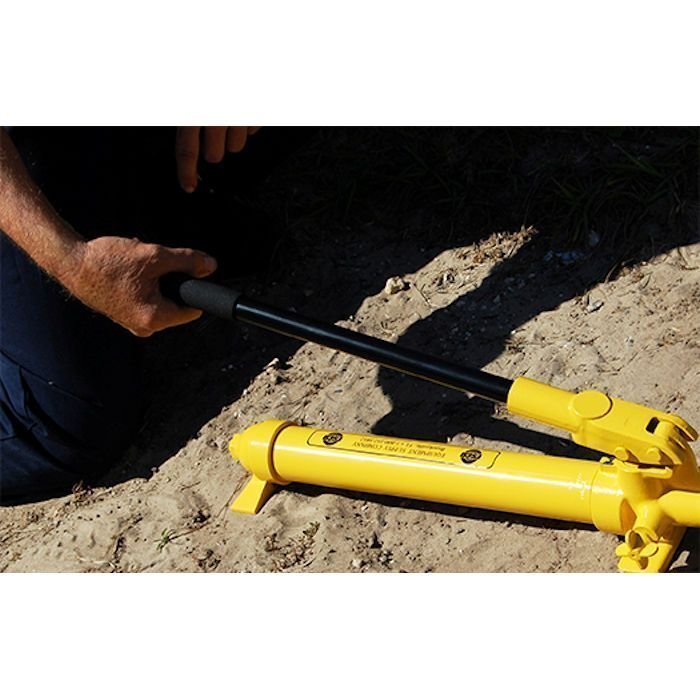

1 Quart Manual Hydraulic Pump Features
- Hand Operated Hydraulic Pump
- 1-Quart Oil Capacity
- 10,000 PSI Hydraulic Pressure
- Shipped With Premium Hydraulic Oil
1 Quart Manual Hydraulic Pump Specifications
- Oil Capacity: 1 Quart
- Material: Metal
- Max. Pressure: 10,000 PSI
- Weight: 14 lbs. (7 kg)
- Warranty: (3) Years Limited*
8′ Hose Assembly with Hose Coupler Features
- Hydraulic Hose With Swivel Fitting – Hose Won’t Kink
- Reinforced With Two Layers Of Braided Steel
- Withstands Extreme Temperatures of -40°F
- Use With Any 10,000 PSI Pump, Ram, Or Bead Breaker
- Includes Half Coupler
8′ Hose Assembly with Hose Coupler Specifications
- Hose Length: 8′ (96″)
- Max. Air Pressure: 10,000 PSI
- Type: 3/8″ 18 Male
- Attachments Included: Model #10605 Half Coupler
- Weight: 5 lbs. (2.2 kg)
