- Brand New
- A strong 24 HP Kohler® engine delivers reliable power to tackle your yard
- 50-in. heavy-duty fabricated AeroForce™ deck with FastAttach® cutting system that has been tested and proven to deliver a best-in-class cut, meaning fewer clumps and stragglers, finer clippings and increased evenness
- Tuff Torq Hydrostatic transmission, no shifting, just push the pedal and go
Specs & Maintenance
Engine
- Engine Brand Kohler®
- Engine Model 7000 Series HD
- Engine Model Number KT735
- Engine Displacement 725cc
- Engine Output 24HP
- Starter Type Electric
- Fuel Tank Capacity 3.0 gal. US (11.36 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qts. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Single element
- Oil Filter Yes
- Fuel Delivery Carburetor.
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V.
Drive System
- Transmission Tuff Torq® K46
- Forward Speed 5.5 MPH / 8.6 km/h
- Reverse Speed 3 MPH / 4.8 km/h
- Rear Axle 1″
- Drive System Hydrostatic
- Transmission Control Foot Pedal
- Transmission Housing Cast aluminum
- Rear Differential Lock No.
Cutting Deck
- Deck Cutting Width 50 in
- Deck Wash Yes
- Deck Material 11-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Fabricated
- Blade(s) 3
- Deck Lift Manual
- Cutting Height Range 1″ – 4″
- Anti-Scalping 4 gauge wheels
- Deck Positions 12.
Warranty
- Warranty 3-year unlimited hours
- Frame Warranty 5-year limited
- Front Axle Warranty 5-year unlimited hours
- Deck Shell Warranty Lifetime limited
- Commercial Warranty No.
Chassis
- Frame Robotically welded
- Turning Radius 16″
- Bumper Brush Guard
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Front Pivot Bar Cast iron.
Controls
- Cruise Control Yes
- Brakes Disc.
Comfort
- Seat Type 15″ High-back
- Armrests Yes
- Seat Adjustment Lever
- Floor Mats Rubber.
Wheels
- Bearing Type Ball Bearing
- Rear Tires 22″x9.5″-12″
- Front Tires 16″x 6.5″-8″
- Tire Tread Turf Master.
Additional Specifications

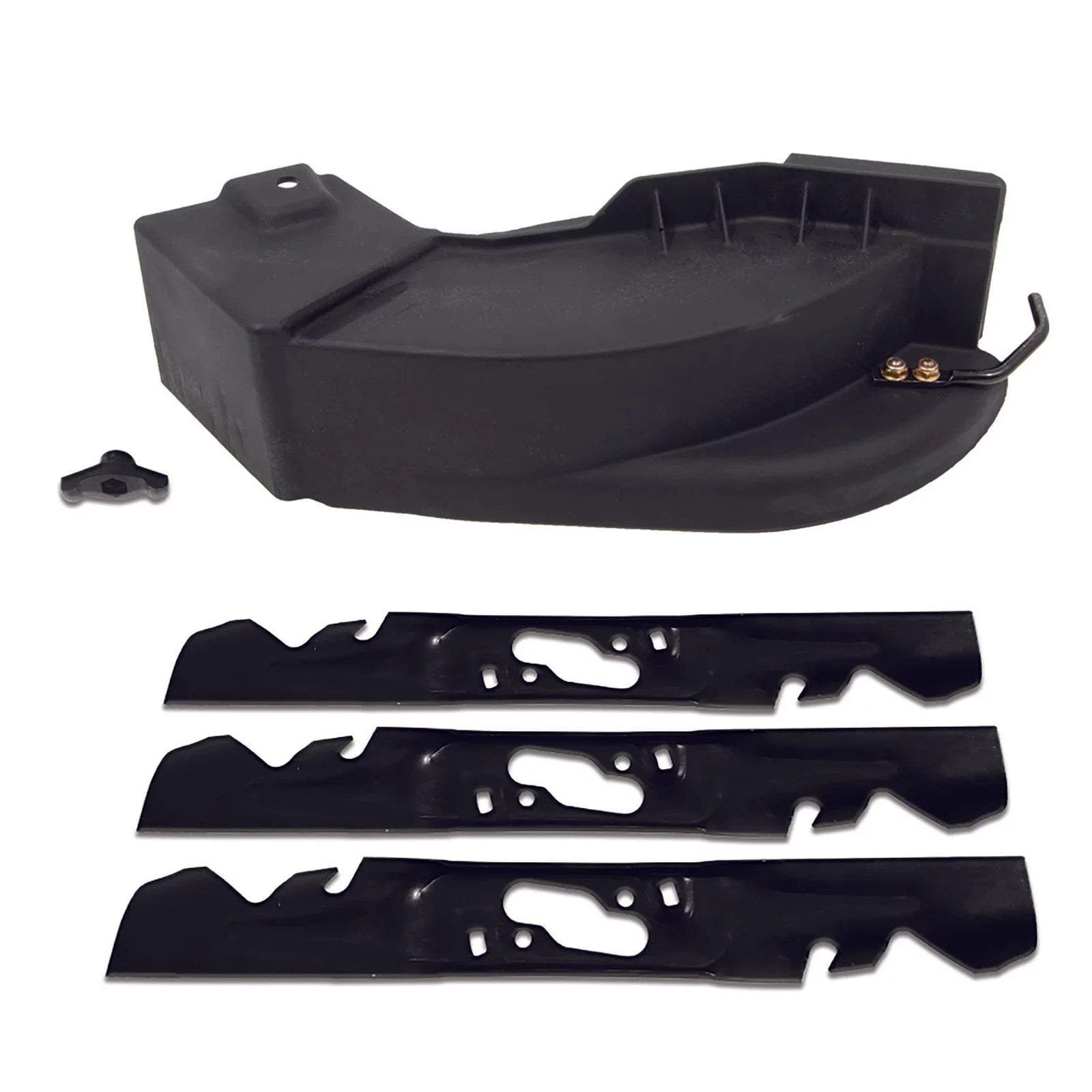

- Mulch Kit Available separately
- Headlight(s) Dual LED
- Cup Holder Yes
- Operator Presence System Yes
- Model Number 13A5A2TLA10.
Dimensions
Assembled Depth (in.) 72 in Assembled Height (in.) 35.5 in Assembled Width (in.) 57 in Cutting Width (in.) 50 inches Front Wheel Size (in.) 15 Mower Deck Width (in.) 50 in Rear Wheel Size (in.) 20 Turning Radius (in.) 16 Details
Assembly Required Yes CA (CARB) Compliant CARB Compliant Commercial / Residential Residential Cutting Options Side-Discharge Deck Material 11 Gauge Steel Deck Type Fabricated Drive Type Rear-wheel Drive Engine Displacement (cc) 725 Engine Make Kohler Engine Engine Torque (ft.-lb.) 0 Fuel Tank Capacity (gallons) 3 gal Horsepower (HP) 24 hp Included with Riding Mowers Battery(s),Engine Oil Lawn Mower Type Front Motor Riding Maximum Cutting Height (in.) 4 Maximum Forward Speed (mph) 5.5 Maximum Reverse Speed (mph) 2.5 Minimum Cutting Height (in.) 1.5 Mower Size Large Number of Blades 3 Number of Blades 3 blades Number of Cylinders V-Twin Number of Deck Wheels 4 Oil Capacity (oz.) 64 Power Type Gas Product Weight (lb.) 720 lb Recommended Oil Type 10W-30 Refurbished No Returnable 30-Day Riding Mower Features Adjustable Cutting Height, Adjustable Speed, Assembly Required, Battery level indicator, Built-in Hitch, Cruise Control, Cup Holder, Deck cleanout, Headlights, Hour Meter, Keyed start, Pneumatic Tires, Residential, Reverse Mowing, Rust resistant deck, Single-lever height adjustment, Translucent Fuel Tank Size of Yard 2 – 4 Acres Start Type Electric Terrain Type Flat with Obstacles, Hilly Transmission Type Hydrostatic Warranty / Certifications
Certifications and Listings CARB Compliant Manufacturer Warranty 3-Year Limited Warranty
