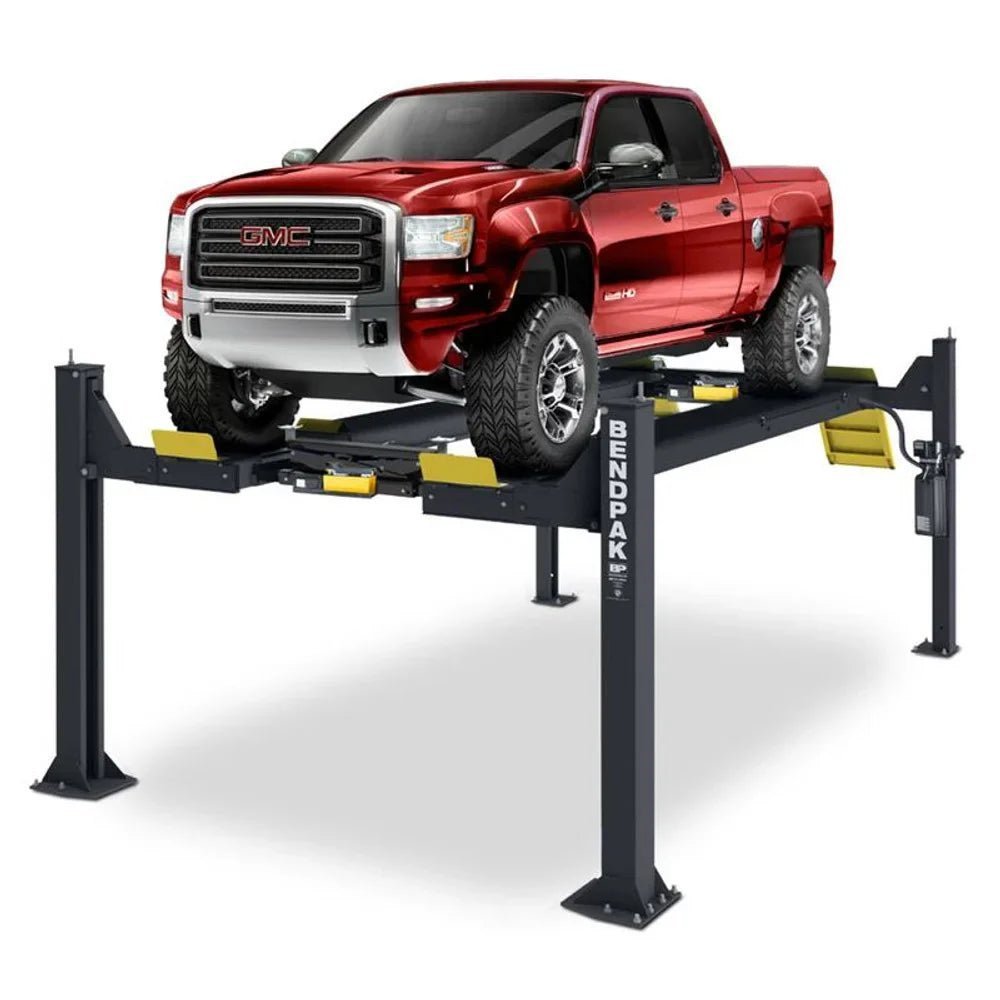

BENDPAK 14,000-LB. CAPACITY OPEN FRONT CAR LIFT

Open-Front Capability in a Powerful Four-Post Lift

The HDSO14P is an open-front four-post lift that features clear entry upfront, providing easy vehicle access. A generous 14,000-lb. lifting capacity and extended runways allow you to service a wide variety of vehicles, ranging from small cars to full-size trucks.

Open-front design

We engineered the HDSO14P without a front cross bar, so operators can easily enter and exit from beneath the vehicle. Now the process of front-end adjustment becomes quick and trouble-free. This model is a must-have for busy alignment bays.

Patented, adjustable front outrigger tubes

For precise front-lift leveling, nothing beats our patented adjustable front outrigger tubes. The infinitely adjustable pitch compensates for excessive loads and unlevel floors.

Dependable design

Four heavy-duty, high-quality, stainless steel lifting cables and a single hydraulic cylinder mounted underneath the runway make this lift the most durable, maintenance-free lifting system on the market.

Oversize dual-hub cable sheaves

Huge 10.5″ diameter cable sheaves within the runway and cross tubes work with massive 2.25″ diameter sheave axles to improve cable wear and critical component lifespan. Dual‐hub cable sheaves reduce stress, fatigue and wear. Naturally, this means a lot less money in service-related expenses down the road.

Multi-level locking positions

The HDSO14P is equipped with multiple adjustable height locking positions for variable-height parking. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously.

Heavy-duty aircraft cable

Each lift is supplied with four high-quality 1/2″ diameter, 6 x 25 stainless steel lifting cables rated at 14,400 lbs. each. The combined rating of these cables is more than 411% of the maximum lifting capacity of the entire lift! This aircraft‐quality cable was specifically designed for lifting applications and provides a great balance between abrasion resistance and fatigue. And we make sure it looks tidy too-all lifting cables are fully enclosed within the lift structure itself.

Maintenance-free electric hydraulic

A maintenance‐free electric hydraulic power system assures ultimate dependability.

Grease nipples

Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze.

Electric / hydraulic power system

We incorporate maintenance-free electric hydraulic power systems into each lift for ultimate dependability, and all controls are conveniently located within close reach.

Large base plates

12″ x 10″ base plates provide a solid foundation for the HDSO14P.

Non-skid runways

This car lift gives you maximum grip, even when the runway surface is wet or oily.

Longer approach ramps

These approach ramps were designed a little longer to help when loading low ground-clearance vehicles. It’s the little bit that makes a big difference.

Integrated design

Lifting cables, airlines, safety latches and sheaves are all fully enclosed.

Integrated hydraulic flow

An integrated hydraulic flow restrictor provides a controlled descent in the unlikely event of an unexpected hose rupture.

Automatic safety locks

Aircraft-quality stainless steel and aluminum pneumatic cylinders release all four locks simultaneously with the simple push of a button. The spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.

Optional 7,000-lb. capacity rolling jacks

The optional 7,000-lb. capacity rolling bridge jack (the RBJ7000) lets operators perform full wheel and brake service to vehicles. They sit along the inner edges of each runway, engage the lift points and quickly lift the wheels off the ramps. These are essential tools for anyone who wants to get the most out of their four-post lift.
